Design Lock v2

The concept image is the sole form reference · rear hinge power lid flip · AI Sensor only · no temperature probe

Structure lock (fully replaces the previous approach)

Opening method: push-button power lid · rear hinge flips backward, not a magnetic side-slide.
Sensor: keep only the downward-facing black AI camera in the lid; temperature probe removed.
Form: flat round base with glowing blue arc display + clear dome with top-centre camera knob + two snap-on bowls (cooked · true-white gloss / raw · fixed clay matte) + rear hinge arm.
Controls: three side buttons — Open / Measure / Power.
Function: weigh W + AI top-down recognition + flip open to swap bowls; fitting the raw bowl switches the scale to the raw nutrition table.

Spec: design_lock/v2/DESIGN_LOCK_v2.md

Master concept image

User concept image (Source)MASTER

Lid closed · AI Sensor onlyPASS

Lid flipped open · in-lid cameraPASS

Side · rear hinge armPASS

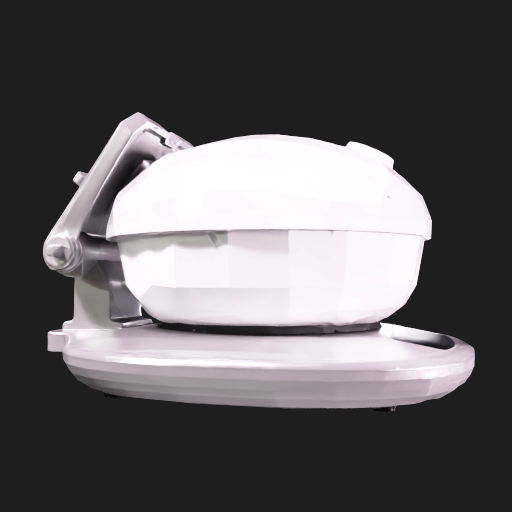

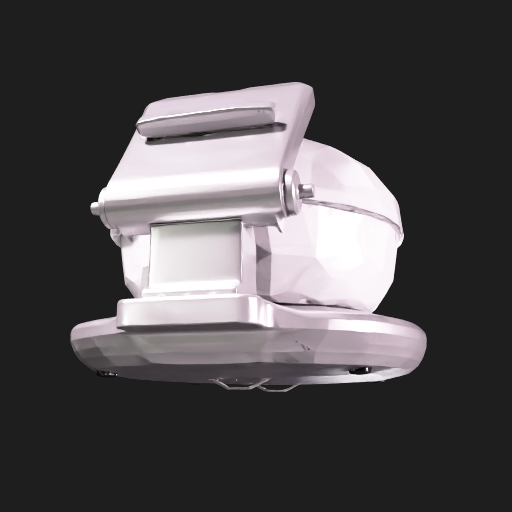

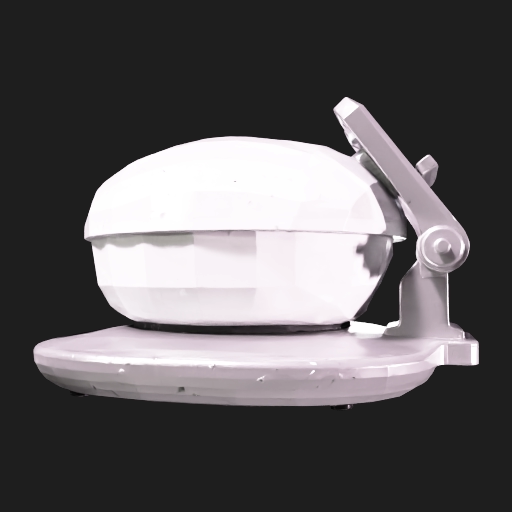

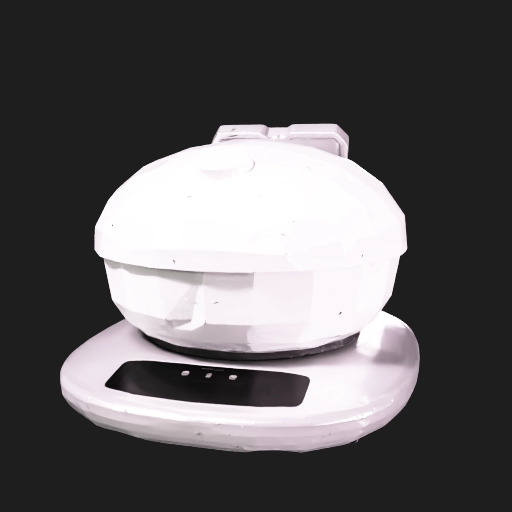

Meshy image-to-3D (v2 concept exploration, deprecated)

Inputs: empty unit lid closed + empty unit lid open + rear-view hinge · no food texture · AI Sensor only

This batch of thumbnails came from an earlier Meshy image-to-3D exploration (models/NutriScan_Pro_v2_meshy.glb) whose surface detail wasn't good enough. The project later moved to a fully parametric Blender build (blender/build_parametric.py) — 07_Meshy_3D_Viewer.html now shows the parametric model, not the Meshy output from this section.
